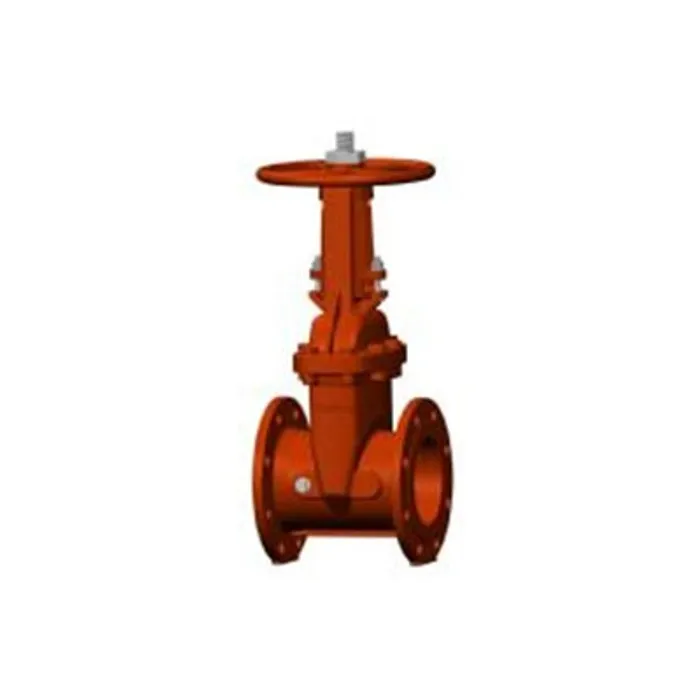

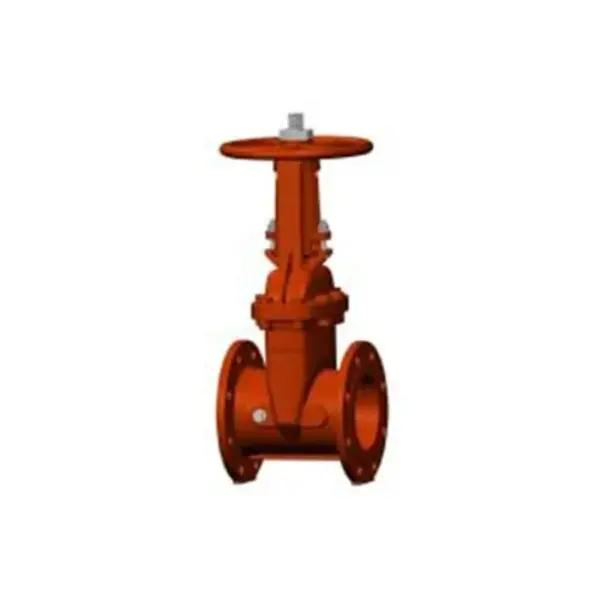

WEFLO Resilient Wedge Gate Valve – DB-F0111-300
OS&Y GATE VALVE RW, DI BODY, FLANGE ENDS, 300 PSI, UL/ FM
Specifications
- Model: F0111
- Complies with AWWA C515 Standard
- Heavy duty handwheel and attachment nut.
- High quality graphite stem seal
- NPT plug on body
- Flanges to ANSI B16.1 Class 125.
- UL Listed 2.5”-12” and FM Approved
- Certified to NSF / ANSI 61 & 372
- GOST Certification
- Working Pressure: 300PSI
- Working Temperature: -10°C to 82°C
- Fusion Bonded Epoxy Coated Interior and Exterior to AWWA C550 Standard
Notes
- Design and material are subject to change without notice.
- Stem Material: should be changed to SS304, Option SS316 and series 300 stainless steel, Bronze.
- BUNA-S (SBR) available for fracking waste water.
