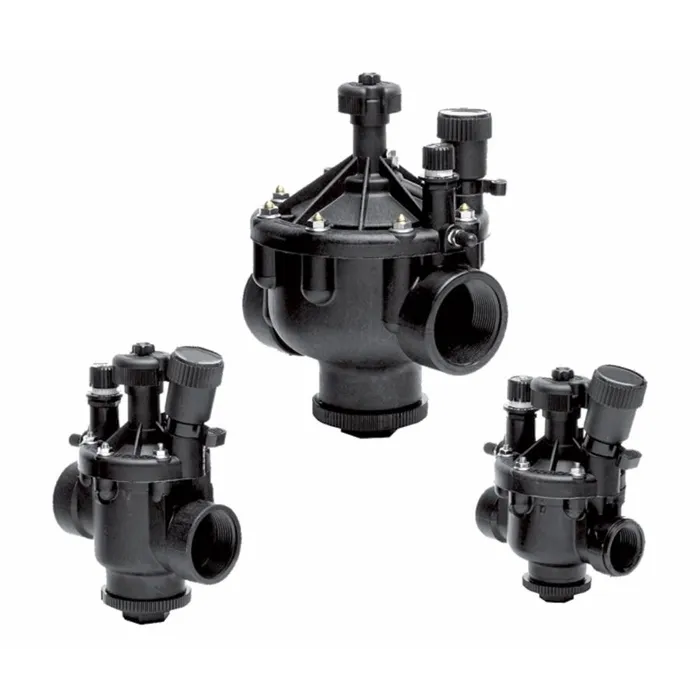

Toro P220 Series Valve, P220-23-68
Product Description
The Toro P220-23-68 Series Valve is engineered for demanding commercial irrigation environments, offering pressure support up to 220 psi (15.2 BAR). Made from tough glass-filled nylon, it features adjustable pressure regulation (5–100 psi), compact EZReg® dial operation, and a highly resilient Spike Guard™ solenoid to handle extreme lightning conditions.
Features
- Delivers over 20,000 volts of lightning resistance—three times more than competitors
- Compact EZReg® dial design can be installed in the field or factory without removing solenoid
- Spike Guard™ solenoid reduces need for replacements and offers low energy consumption
- Operates efficiently under high pressure—up to 220 psi (15 BAR)
- Water-resistant build keeps valve box clean and dry
- Allows for quick and easy verification of downstream pressure
Specifications
| Burst Pressure Safety Rating | 750 psi (51.7 bar) |
| Construction | Glass Filled Nylon |
| Dimensions | 1″: 6.75″ H x 3.625″ W; 1.5″: 7.25″ H x 3.625″ W; 2″: 9.5″ H x 6.125″ W |
| Flow | 1″: 5–40 gpm; 1.5″: 30–100 gpm; 2″: 80–180 gpm |
| Holding | 60 Hz, 0.10 Amps |
| Minimum Pressure Differential | 10 psi (0.7 bar) |
| Operating Pressure | 1″ & 1.5″: 10–220 psi; 2″: 20–220 psi • Pressure Reg.: 5–100 psi |
| Size | 1″, 1.5″, 2″ |
| Solenoid | Spike Guard™ 24 VAC (50/60 Hz); DC latching |
