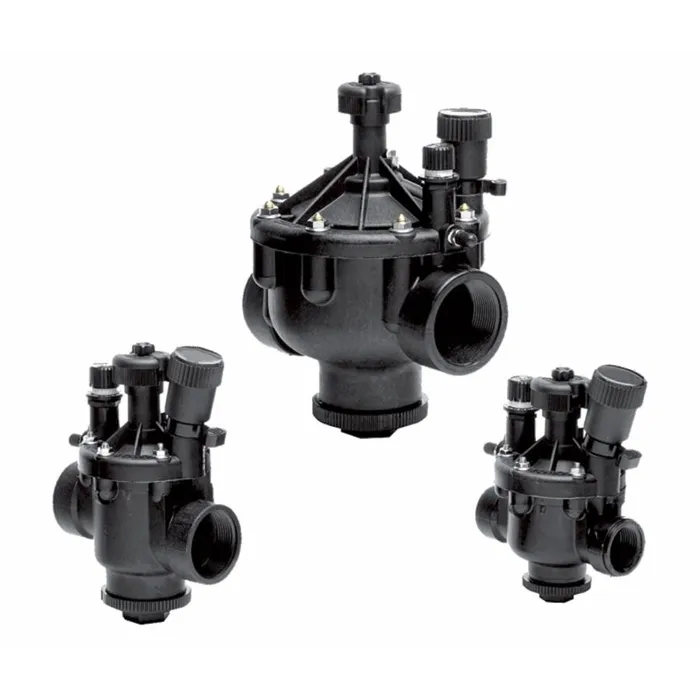

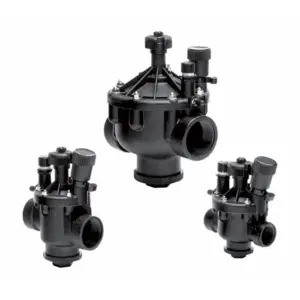

Toro P220 Series Valve, P220-23-66
Product Description
Built for commercial-grade durability, the Toro P220-23-66 Series Valve handles pressures up to 220 psi (15.2 BAR). Its glass-filled nylon construction, integrated pressure regulation (5–100 psi), and advanced features like EZReg® dial technology ensure efficient and reliable irrigation performance. With top-tier lightning resistance, it’s ideal for high-demand environments.
Features
- Over 20,000 volts of lightning protection—three times more than competing valves
- EZReg® dial allows for factory or field installation without removing solenoid
- Spike Guard™ solenoid minimizes replacements and has ultra-low power draw
- Reliable at pressures up to 220 psi (15 BAR)
- Water-resistant design keeps the valve box dry and accessible
- Easy monitoring of downstream pressure
Specifications
| Burst Pressure Safety Rating | 750 psi (51.7 bar) |
| Construction | Glass Filled Nylon |
| Dimensions | 1″: 6.75″ H x 3.625″ W; 1.5″: 7.25″ H x 3.625″ W; 2″: 9.5″ H x 6.125″ W |
| Flow | 1″: 5–40 gpm; 1.5″: 30–100 gpm; 2″: 80–180 gpm |
| Holding | 60 Hz, 0.10 Amps |
| Minimum Pressure Differential | 10 psi (0.7 bar) |
| Operating Pressure | 1″ & 1.5″: 10–220 psi; 2″: 20–220 psi • Pressure Reg.: 5–100 psi |
| Size | 1″, 1.5″, 2″ |
| Solenoid | Spike Guard™ 24 VAC (50/60 Hz); DC latching |
