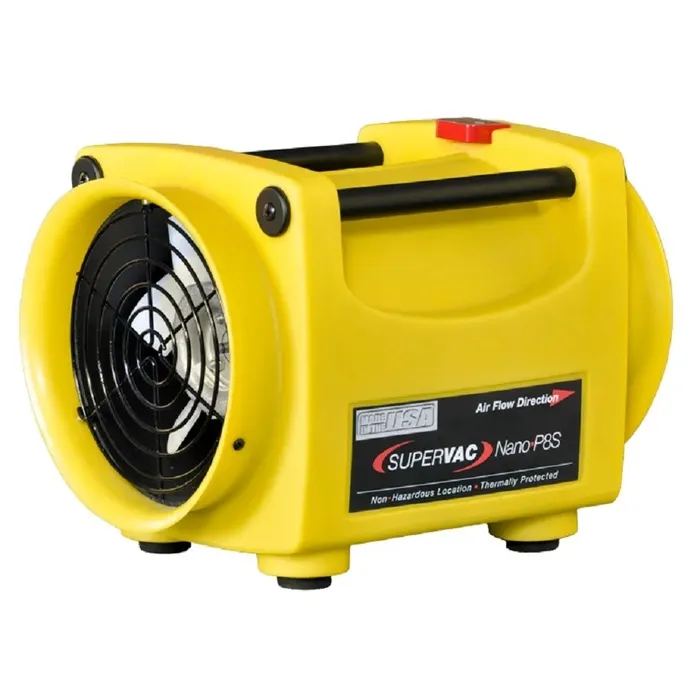

SUPER VAC, Axil Blower 1/3 HP Electric Nano Confined Space, Fan 8” – P8S-220V
Product Description
The Super Vac Nano P8S is an 8″ electric confined space fan built for exceptional strength, efficiency, and reliability. Its square design enhances durability, while convenient carrying handles on each corner allow for easy positioning and quick deployment. Proudly made and assembled in the USA, this fan showcases premium craftsmanship.
Equipped with a 1/3 horsepower TEAO (Totally Enclosed Air Over) electric motor, the Nano P8S operates on both 115VAC and 230VAC systems, offering flexible performance in a variety of settings.
The fan’s housing is made from high-impact polyethylene, resistant to weather and corrosion, and reinforced with a full aluminum liner and aluminum handles for added durability. Its blade, constructed from Durethan BKV 25 H3.0, is precision-balanced for peak performance and can operate in extreme temperatures ranging from -40°C to +95°C. The direct-drive motor design eliminates belts, pulleys, or gears, ensuring reliable, low-maintenance operation.
For safety, the Nano P8S features OSHA- and U.L.-compliant guards on both the front and rear to prevent accidental contact with the blade. It is also designed to accommodate ventilation ducts on either the intake or exhaust side, supporting spiral or “L” air ducts without the need for additional adapters.
Perfect for confined space ventilation, the Super Vac Nano P8S is a robust and dependable solution for even the toughest environments.
Features
- Flexible Operation: Compatible with both positive and negative pressure setups, allowing ducts to be attached to either side as needed.
- Ergonomic Dual Handles: Designed for effortless transportation and convenience during use.
Specifications
| Motor Manufacturer | TEAO Electric Motor |
| Horsepower | 1/3 HP |
| Voltage | 115V, 60Hz or 230V, 50Hz |
| Output | 1,037 cfm |
| Dimensions | 11.50″ high x 10.75″ wide x 16″ deep (295 mm x 275 mm x 405 mm) |
| Weight | 20 lbs. |
Standard Duct
A standard Super Vac duct for the Nano fan is included. This duct is made from single-ply neoprene-impregnated polyester, reinforced with a continuous spring steel wire helix for added strength. It also features a built-in carry bag for compact storage and easy transportation.
The duct is built to withstand extreme temperatures, ranging from -40°F to 250°F. It includes a heavy-duty vinyl wear strip with a self-adhering neoprene backing and weighs approximately 25–27 oz. per square yard. Its abrasion resistance is rated at 18,000 cycles using an H-22 wheel with a 1,000-gram load (FSTM 191 Method 5306).
Structural integrity is ensured by a Class 1 hard-drawn spring steel wire helix that meets ASTM 227 standards. The duct is also flame-retardant, meeting UL94-V-O, MINS 540-106-1 (Mare Island Naval Shipyard), California T-19, and NFPA 701 (Large Scale) certifications.
Weighing no more than 1 lb. per foot, the duct is lightweight and highly flexible, with a bend radius of just 6.1 inches, making it ideal for confined space applications.
