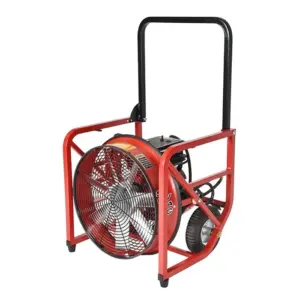

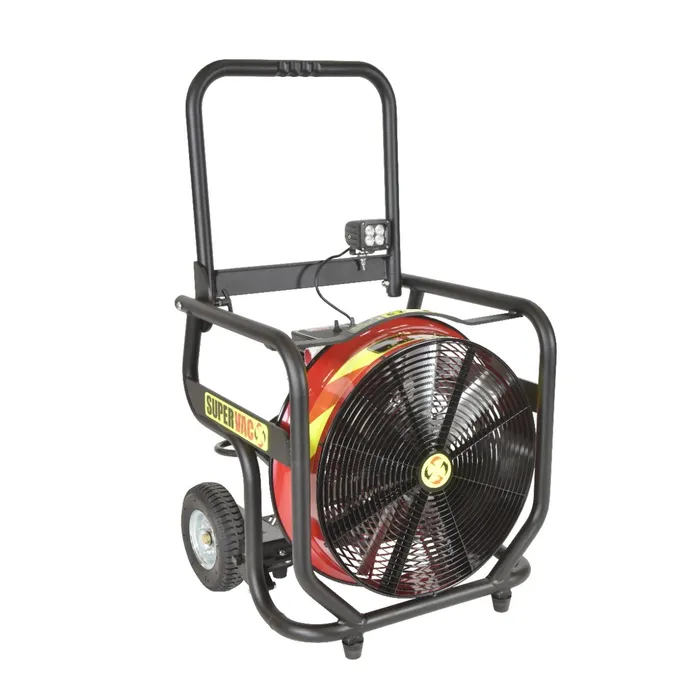

SUPER VAC 18″ Valor PPV, 1.5 Hp Variable Speed Motor – V18-EV
Frame Features
- Full-Roll Cage Frame: Features a tough, tubular aluminum frame to protect key components; delivers a lightweight design (15% lighter than steel frames)
- 7-Position Tilt Frame with Step Pad: Provides positive/ negative angles; allows for fan placement on stairs; allows tall firefighters to easily move fan
- Fold-Down Ergonomic Handle: Folds down into frame for compact storage; features full-width handle for easy grip with heavy-duty gloves
- Flat-Proof Rubber Tires: Eliminates flat tires; rolls up stairs and curbs easily; tires are placed on the back of the frame so that firefighters never have to put themselves between the PPV and the fire during setup
Fan Features
- Single-Piece Cast Aluminum Blade: Holds up better than plastic in high heat
- Precision-Spun Steel Shroud: Provides durability with maximum airflow
- StreamShaper Guard: Standard guard, designed for farther setback; Air Cone Guard available by request
- AMCA Licensed Airflow: Ratings listed below are based on tests in accordance with Air Movement Control Association (AMCA publication 240) and comply with the AMCA certified ratings program
Specifications
| Model | V18-EV |
| Weight | 84 lbs / 38 kg |
| Motor | RAE, TEAO, variable speed, 1 HP, 50/60Hz, 115/230V AC |
| RPM | 2,368 |
| Start | 2,000 w / 15-amp circuit |
| Run | 1,500 w |
| Setback | 9 ft / 2.7 m |
| Angle | 11.5° |
| Output | 11,709 cfm / 19,894 cmh |
