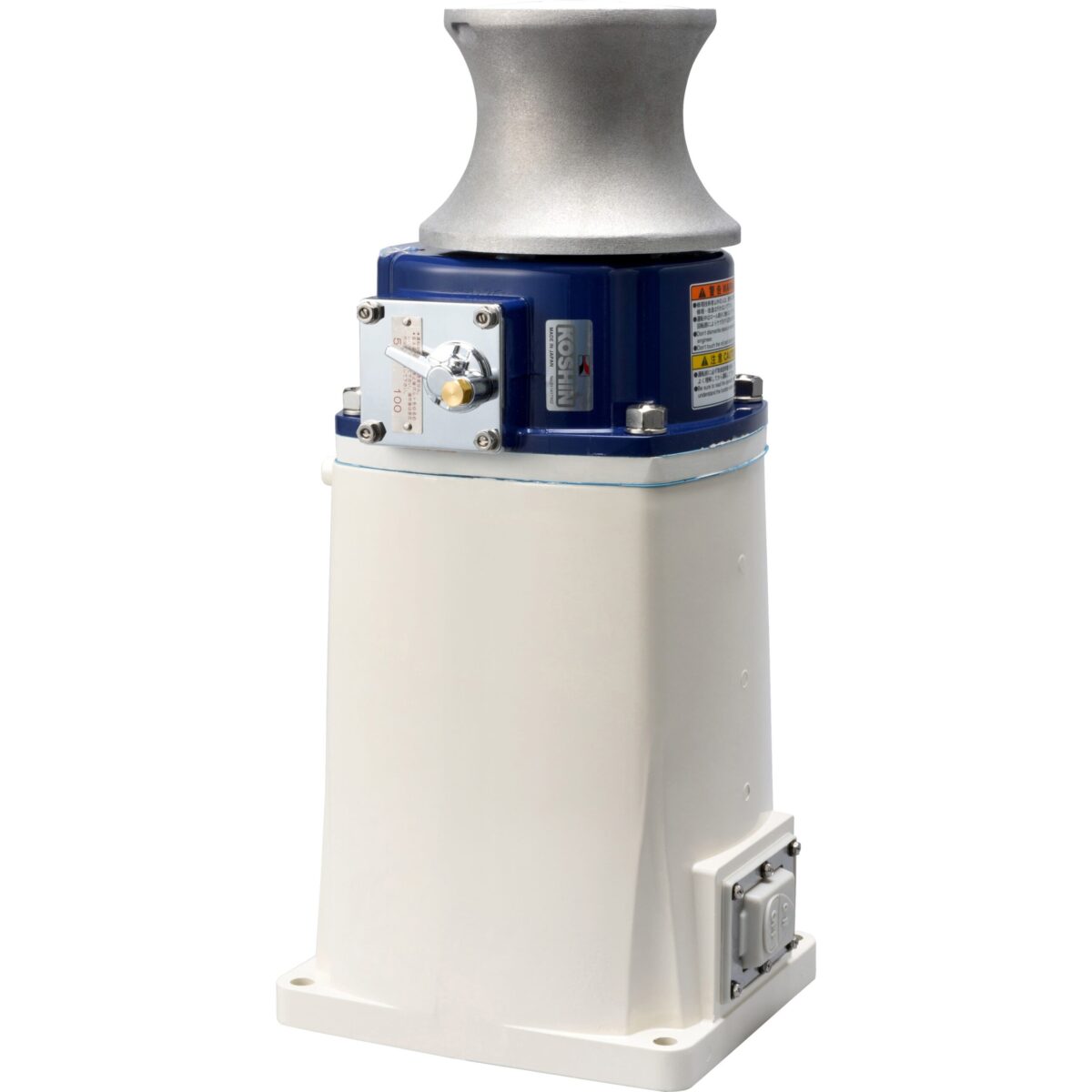

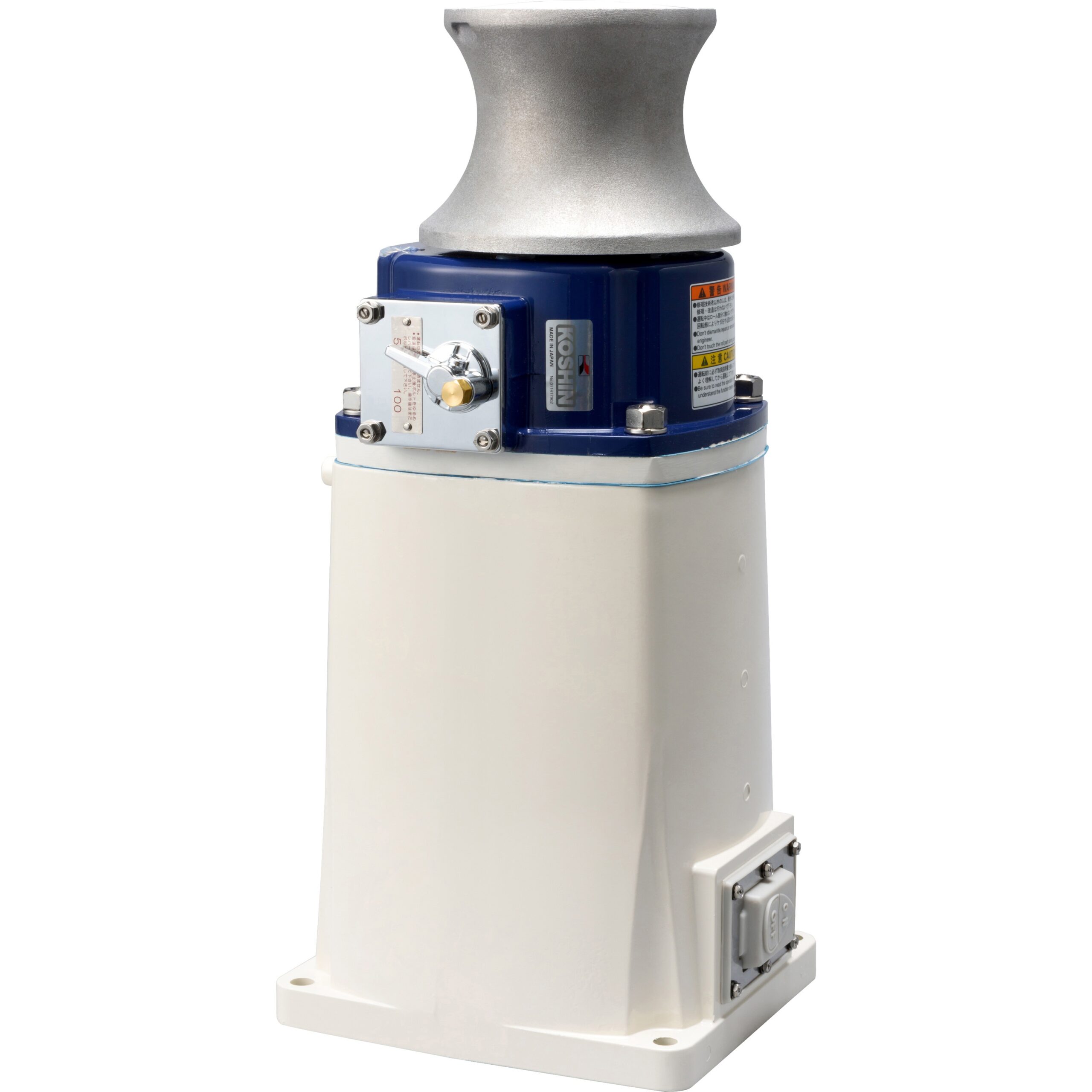

RES-2512-BAA WINCH DC-12V – Koshin (Japan)
PRODUCT DETAILS
| Model | RES-2512 |
| Voltage | DC 12V |
| Rated current | 30A |
| Motor output | 250W |
| Rating | 1h/30A |
| Roller Revolution | 50rpm (low) 100rpm (high) |
| Max. Manual Capacity | 280kg (low) 140kg (high) (90A) |
| Manual Capacity Rating | 90kg (low) 45kg (high) (30A) |
| Winch Speed | 6m/min (19ft/min) (low) 13m/min (42ft/min) (high) |
| Standard Accessoires | 1 Cable Gland for Ship, 1 Waterproofing Plate,1 Vertical Type Main Body Packing, 5 Crimping Terminals, 1 Connection Terminal |
| Net Weight | 20kg |
| Dimensions LxWxH (mm) | 478x245x285 |
