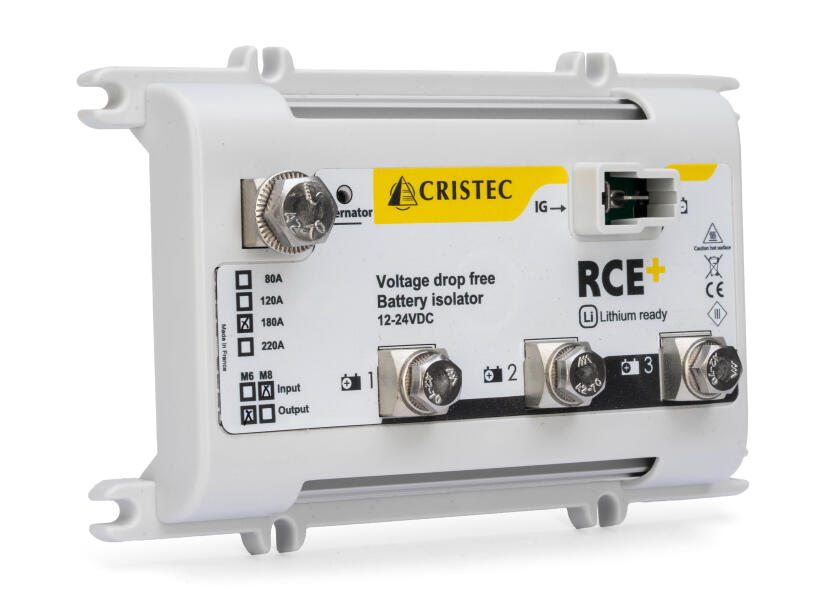

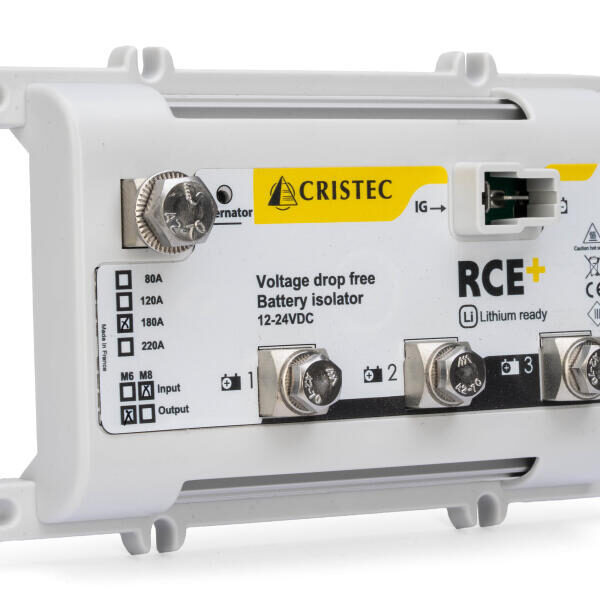

RCE+ Battery Isolator / 180 A / 3 outputs / M8
Product data
- SVB item number32182
- EAN3700505104049
- Manufacturer no.RCE180-1EM8-3SM8-PL
- DescriptionCRISTEC – RCE+ battery isolator
- Operating voltage12 V, 24 V
- Max. charging current180 A
- Charging outputs3
- Connector pinsM8
- Generator start-up controlYes
- Voltage lossNo
- Width159 mm
- Height100 mm
- Depth36 mm
- Weight0.45 kg
Product details
The RCE+ battery isolators from Cristec feature modern MOSFET technology, which allows you to charge two or three batteries simultaneously with virtually no voltage loss. Battery isolators prevent the current from flowing from one battery bank to another. Voltage loss is less than 0.02 V at low currents and only 0.1 V at higher currents (20 A). These battery isolators also feature an integrated ignition alternator terminal (IG) which provides current-limited power to the alternator B+ terminal with ignition switch on. The RCE+ charging current distributors feature more robust transistors that exhibit better thermal behaviour in conjunction with lithium batteries. Suitable for 12 and 24 volt systems.
Technical data
| Max. charging current | 180 A |
| Number of batteries | 3 |
| Input connection | M8 bolts |
| Output connection | M8 bolts |
| Weight | 0.45 kg |
| Dimensions (WxHxD) | 159 x 100 x 36 mm |
