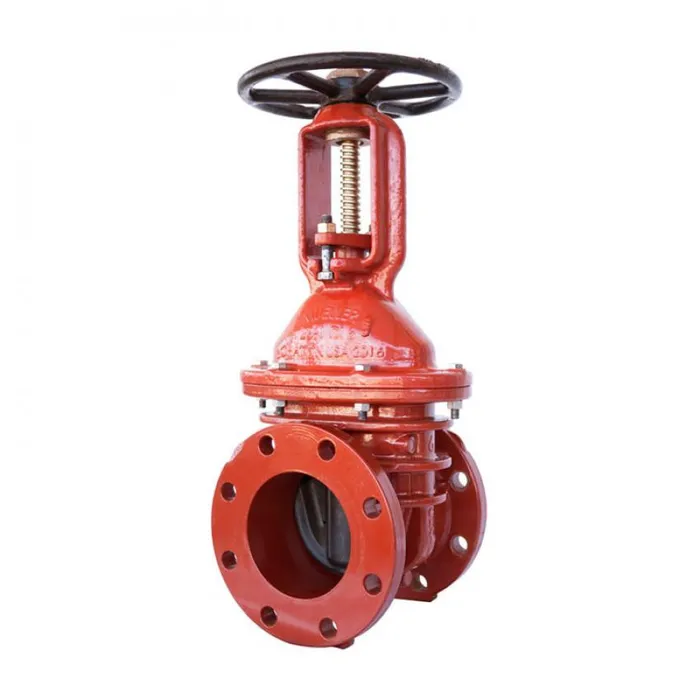

MUELLER OS&Y Resilient Wedge Gate Valve – DB-RMFP2

د.إ 4,272.00

Details

Model RMFP2
Class 125/150
Outside Screw & Yoke (OS&Y).
Iron Body, Bonnet, and Yoke.
Mueller Pro-Gard® Fusion Bonded Epoxy Coating covers all cast surfaces inside and out – 10 mils (250 μ) nominal. Meets requirements of AWWA / ANSI C550.
Meets requirements of AWWA / ANSI C515 and is certified to ANSI / NSF 61 & 372.
Iron wedge, symmetrical and fully encapsulated with molded rubber; no exposed iron.
Polymer cap bearings on wedge guides resist wear and provide easy operation.
Bi-directional flow.
10-year limited warranty.
2″ – 12″/ DN50 – DN300: 350 psig / 24 barg AWWA / UL / FM WP, 700 psig / 48 barg TP.
UL 262 listed, FM 1120 / 1130 approved.
Flange End drilling meets: ANSI B16.1,Class 125 and ANSI B16.42, Class 150 Flat Face. Optional PN10, PN16 drilling
