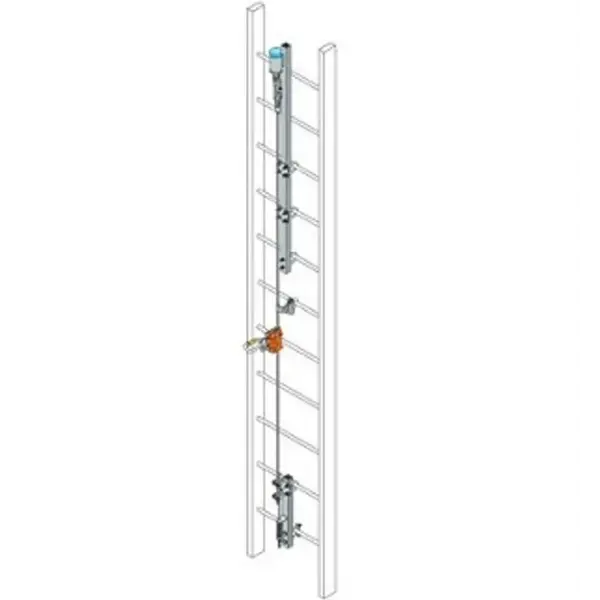

Miller Honeywell Vi-Go Ladder Climbing Safety Systems – VG30
Product Description

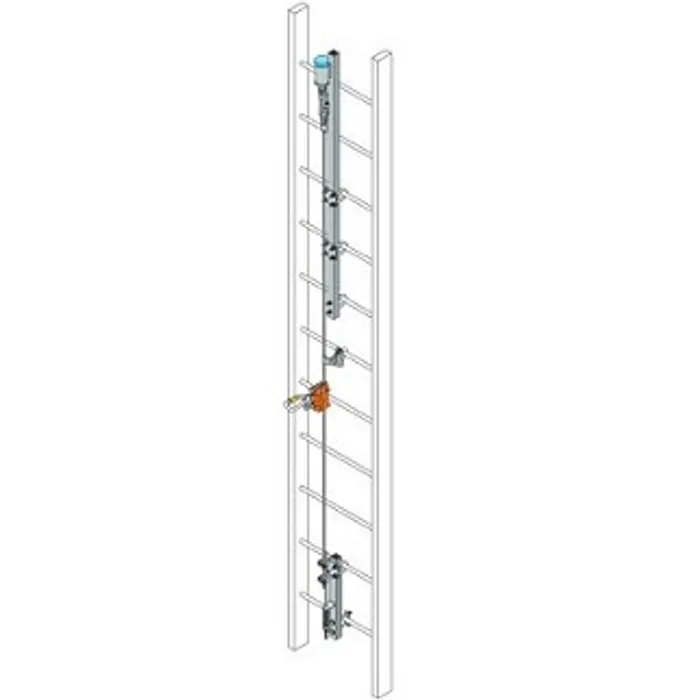

The Vi-Go Ladder Climbing Safety System offers continuous fall protection for secure climbing on fixed ladders. Available in easy-to-install kits or as a customizable system, it ensures maximum safety and flexibility for various work environments.
Materials
| Component | Material & Specifications |
|---|---|
| Top/Bottom Bracket | Hot-dipped Galvanized Steel |
| Top Bracket Dimensions | 1 ½” x 1 ½” x 59 ½” Square Tubing |
| Bottom Bracket Dimensions | 1 ½” x 1 ½” x 18” Square Tubing |
| Quick Link | Zinc Plated Steel, 1/2” Diameter |
| Shock Absorber | Urethane Rubber |
| Rung Clamps | Hot-dipped Galvanized Steel |
| Rung Clamp Size | 3/8” -16 |
| Rung Diameter | 3/4” to 1-1/8” |
| Cable Assembly | |
| Wire Rope | 3/8” Diameter Galvanized Steel, 7 x 19 Strand Core |
| Swaging Sleeve for Flemish Eye Splicing | Steel |
| Wire Rope Thimble | Hot-dipped Galvanized Steel (FF-T-2466 Type III) |
| Cable Guide | Polyurethane Cable Retainer, Hot-dipped Galvanized Steel Bracket |
| Lifeline Tensioner | |
| Spring | Zinc Plated Steel |
| Threaded Rod | Hot-dipped Galvanized Steel |
| Fixed Ladder Requirements | |
| Compliance | Must meet all applicable local, state, and Federal standards including ANSI A14.3 |
Technical
| Specification | Details |
|---|---|
| Max. Breaking Strength | |
| Quick Link | 11,400 lbs (51 kN) |
| Cable | 14,400 lbs (per US Federal Specification RR-W-410E) |
| Max. Working Load | |
| Quick Link | 2,860 lbs (1297 kg) |
| Cable Assembly | 2,400 lbs (>9600 lbs Breaking Strength) |
Standards and Certifications
- Meets OSHA 1926.502, OSHA 1910.27, ANSI A14.3 and CSA Z259.1-98 (Class AS) standards requirements.
