Maxwell’s all-new RC series windlasses proudly follow in the highly successful footsteps of the Freedom. RC6 is available in low profile version only.
Features :

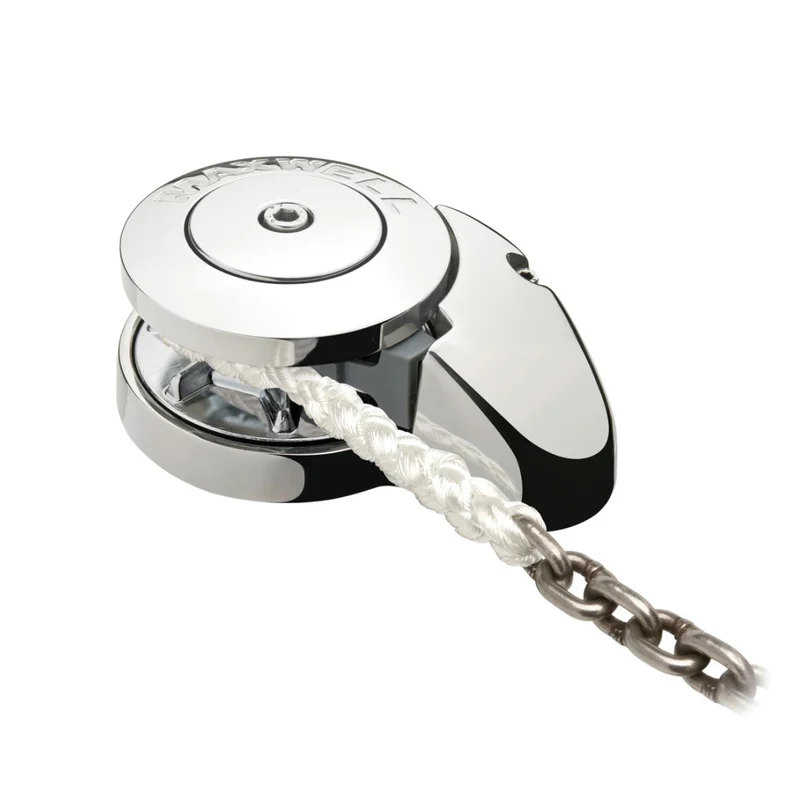

The combined stainless steel and chromed bronze RC6 Series utilises 6mm/7mm (1/4 inch) chain spliced to 12mm (1/2 inch) three strand or 8-braid (plait) rope.
The RC6 features Maxwell’s revolutionary, and patented, new Wave Design chainwheel.
Providing most of the features of the larger RC8, the RC6 has been designed with the smaller, trailer boat market in mind.
The in-line, vertical gearbox and motor means quick and easy installation by either the boat yard or the DIY aftermarket customer.
An inexpensive, high performance and great looking windlass, the RC6 is built for durability and years of trouble free use.
The RC6 is a Low Profile unit (no optional capstan drum).
Max line Pull :  350 kg (770 lbs).
Rope Speed :  24 m/min, 79 ft/min.
Chain Speed :  21 m/min, 69 ft/min.
Voltage :  12 V.
Motor Power : 500 W.
Rope Size :  12 mm.
Chain Short Link :  6 mm – 7 mm.

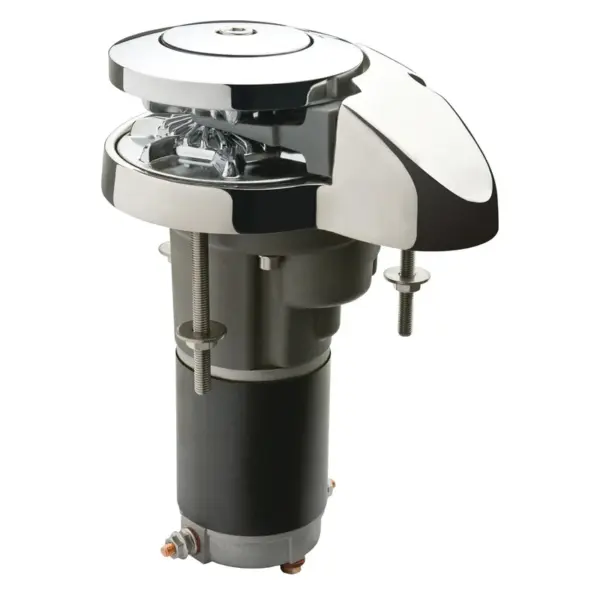

Maxwell RC-6 6 mm Low Profile
