An extremely versatile vertical capstan or general purpose electric winch for use as an anchor winch, pot hauler or davit winch.
Switch and Breaker NOT included.
Features :
The ANCHORMAX™ has an extremely high power to weight ratio. The compact, fully sealed gearbox is driven by a vertically mounted,  permanent magnet motor.
Intrusion below decks is minimized making the * design ideal for boats from 5m ( 16ft )  to 10m ( 32ft ).
Fitting to the boat is simplicity itself as no dismantling of the winch is required.
The ANCHORMAX™ gear housings are marine-grade alloy and the drum is stainless steel.
It is supplied as a single direction (clockwise) unit, complete with deck switch, fastenings, template and fitting instructions.
The ANCHORMAX™ is not recommended for use to haul halyards.
The ANCHORMAX™ is not recommended for use to haul chain.
Max line Pull :  330 kg (740 lbs)
Speed :  21 m/min (69 ft/min).
Voltage :  12 V.
Motor Power : 500 W.
Max. Boat Length :  10 mm.

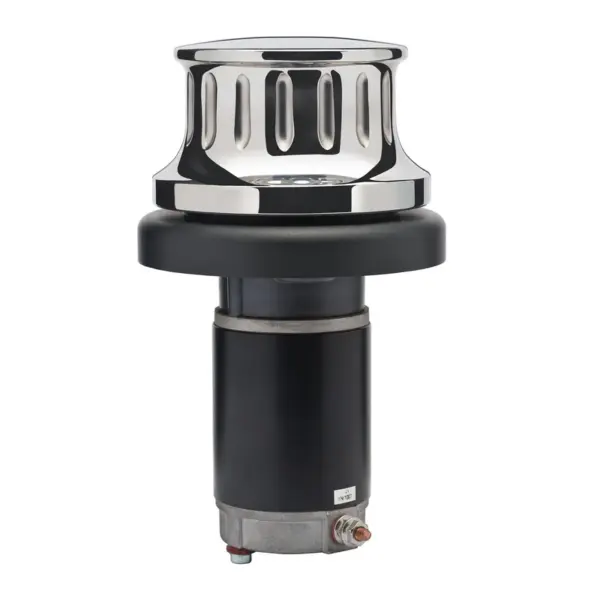

Maxwell Anchormax Capstan
