JSP Confined Space Rescue Winch – FAR1004
Product Description

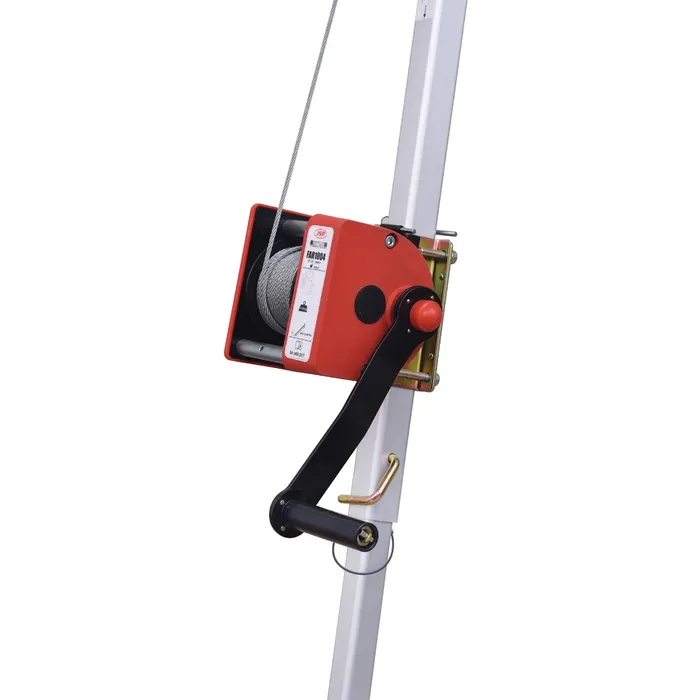

The Confined Space Winch is designed to provide reliable lifting and lowering support for confined space entry and rescue. It features an integral braking system and a galvanized steel cable with a 4.8 mm diameter and a maximum length of 20 metres. The winch includes a mounting plate with four bolts for secure attachment to a tripod leg or other support structures. Equipped with a steel screw locking connector (18 mm gate opening), the system ensures secure connections, complying with EN 362:2004 Class B & M. The rotating handle mechanism allows smooth lifting or lowering of loads up to 135 kg. Weighing just 9 kg, the winch is tested according to EN 1496:2017 Class A standards. Note: not suitable for fall arrest applications.
Features
- Integral braking system
- Maximum cable length: 20 m
- Mounting plate with four bolts for secure attachment
- Galvanized steel cable (4.8 mm diameter)
- Steel screw locking connector (18 mm gate opening, EN 362:2004 Class B & M)
- Handle rotating mechanism for lifting or lowering
- Rated load capacity: 135 kg
- Weight: 9 kg
- Tested to EN 1496:2017 Class A
- Not suitable for fall arrest
