CMC Rescue Triskelion™ Tripod Ground Stake Kit (3) – 760016

Product Description

The CMC Triskelion sets a new benchmark for industrial rescue tripods, providing exceptional deployment speed, ease of use, and versatility. It features an adjustable height range from 5.5 to 10 feet, and is certified to both NFPA and EN standards, ensuring greater safety and efficiency in confined space and industrial rescue operations.

Built for use in various environments, the Triskelion’s adjustable height makes it suitable for low-clearance areas while also extending to accommodate patient lifting with full-sized litters. Key features include compatibility with cables and ropes up to 13 mm (1/2 inch), multiple anchor points for pulleys, versatile winch mounting options, rectangular legs with integrated stoppers, tethered push pins, high-visibility markings, pivoting feet, quick-connect webbing hobble strap, and a reinforced carrying bag that allows for one or two-person transport. A variety of purpose-built accessories further increase its adaptability and usability.

Features

Height:

• The maximum working height of 10 feet allows for safe retrieval of patients from confined spaces using either a harness or litter.
• The minimum working height of 5.5 feet is ideal for low-clearance spaces.

Rigging:

• Two stainless steel pulleys mounted on the head accommodate cables and ropes up to 13 mm (1/2 inch) in diameter.
• Three side-plate anchor points are well-suited for systems like the CSR2 pulley system, offering a 4:1 mechanical advantage.
• Additional tie-off points provide extra options for rigging or stabilization.
• Offers multiple mounting options for winches such as the Harken LokHead Winch and DBI-Sala Salalift II Winch.

Legs:

• The rectangular leg design prevents rotation, ensuring that the adjustment holes and feet remain aligned.
• Built-in stoppers prevent overextension, keeping the inner legs securely locked.
• Legs adjust in 4-inch increments, allowing full extension even in areas with height restrictions.

Pins:

• Large ball-lock push pins securely lock the legs in place and are designed for ease of use, even with gloves.
• The push pins click firmly into position and are tethered with durable lanyards to prevent loss.

Graphics:

• High-visibility graphics make it easier to see in low-light environments.
• Leg height markers are clearly visible, even in noisy or distracting conditions.
• Additional icons help guide the proper installation of the winch, aligning with the head-mounted pulleys.

Feet:

• Pivoting feet adapt to different surface angles, improving stability.
• Non-slip treads on the feet provide grip on hard surfaces, while spiked tips enhance stability on softer ground.

Hobble Strap:

• A red webbing hobble strap secures the tripod legs at the base with a quick-connect Cobra Buckle.
• Lighter and quicker to set up than chains or multiple materials, the strap also reduces the risk of tripping with its bright red, highly visible design.

Carry Bag:

• • The reinforced carry bag includes a diagram for easy, balanced transport by one person.
  • It also features end handles for two-person carrying, and a padded shoulder strap for single-person transport.

Triskelion Components

• Triskelion Tripod
• Hobble Strap
• Carry Bag
• Leg Strap
• User Manual

Specifications

Certifications

• NFPA – General Use
• EN 795:2012 Type B for Single Person Use
• CEN/TS 16415:2013 Type B for 2 Person Use

Accessories (Sold Separately)

Equipment Bracket:

• Provides an additional anchor or tie-off point when attached to the tripod leg.
• Easily secures with two push-pins that include wire lanyards for added convenience.
• Can be mounted on either the inner or outer side of the leg, offering flexible rigging options.
• Supports mechanical advantage systems, rope devices, and pulleys for use at the top of the Triskelion.
• Features a maximum breaking strength (MBS) of 22 kN and a working load limit of 220 kg (484 lb), ensuring safety with a 10:1 ratio.

LokHead Winch Adapter:

• Designed to securely mount the Harken LokHead Winch onto the Triskelion.
• Quick and easy installation with large, ball-lock push pins for smooth operation.
• Offers a more efficient setup compared to the traditional u-bolt and anchor strap method.
• Provides a secure, self-contained attachment point, installable on both the inside and outside of the legs.

Salalift II Winch Adapter:

• Enables the attachment of the 3M DBI/SALA Salalift II Winch to the Triskelion.
• Installs quickly and securely using large ball-lock push pins for fast and efficient setup.

Foot Step Kit (2 Steps):

• Attaches to the lower section of the Triskelion leg, allowing operators to access the top of the tripod once fully deployed.
• Provides a safe and efficient way to make adjustments, fix rigging issues, or conduct safety inspections at height.

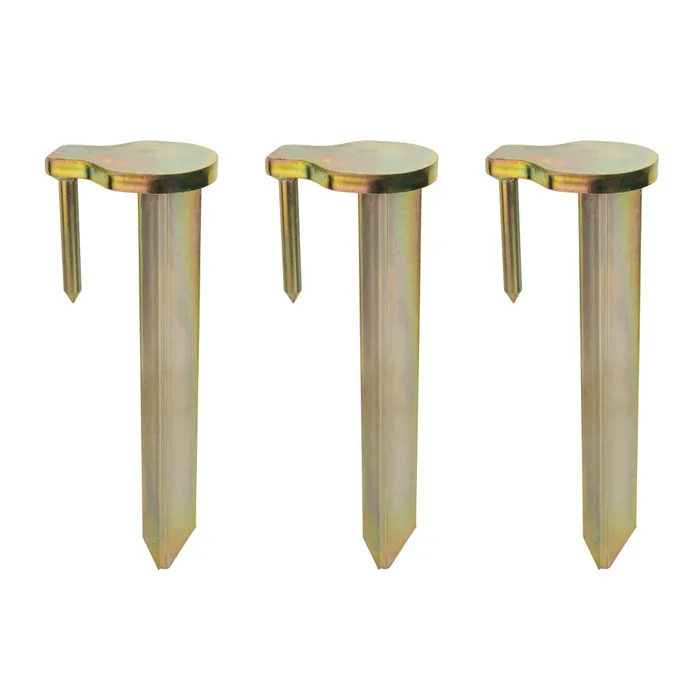

Ground Stake Kit (3 Stakes):

• Integrates with the Triskelion’s feet to enhance stability on soft or uneven terrain.
