CMC Rescue Triskelion™ Tripod Foot Step Kit (Pair) – 760015

Product Description

The CMC Triskelion sets a new standard in industrial rescue tripods, offering unmatched speed of deployment, user-friendliness, and adaptability. With an adjustable working height between 5.5 and 10 feet, it meets both NFPA and EN certifications, providing enhanced safety and efficiency for confined space and industrial rescue operations.

Designed to handle diverse environments, the Triskelion’s height range easily accommodates low-clearance spaces and can extend for lifting patients in full-sized litters. Notable features include compatibility with cables and ropes up to 13 mm (1/2 inch), multiple anchor points for pulley systems, flexible winch mounting options, rectangular legs with integrated stoppers, tethered push pins, high-visibility graphics, pivoting feet, quick-connect webbing hobble strap, and a reinforced carry bag that allows for single or two-person transport. A range of well-designed accessories further enhances its versatility and ease of use.

Features

• Height:
  • Maximum working height of 10 ft allows for safe patient retrieval from confined spaces using a harness or litter.
  • Minimum working height of 5.5 ft makes it ideal for low-clearance environments.

  Rigging:

  • Two head-mounted stainless steel pulleys are designed for use with cables and ropes up to 13 mm (1/2 in).
  • Three side-plate anchor points are perfect for systems like the CSR2 pulley system with a 4:1 ratio.
  • Equipped with three additional tie-off points for extra rigging or stabilization.
  • Multiple options are available for mounting the Harken LokHead Winch and DBI-Sala Salalift II Winch.

  Legs:

  • Rectangular leg design prevents rotation and ensures alignment of adjustment holes and tripod feet.
  • Built-in stoppers prevent overextension by keeping the inner legs securely in place.
  • Adjustable in 4-inch increments, allowing maximum extension in height-constrained areas.

  Pins:

  • Legs are secured with large, easy-to-use, ball-lock push pins that can be operated while wearing gloves.
  • Push pins snap securely into place, with durable lanyards to prevent loss.

  Graphics:

  • High-contrast graphics improve visibility in low-light conditions.
  • Leg height markers are clearly visible, even in noisy environments.
  • Additional icons help with winch installation, aligning with the head-mounted pulleys.

  Feet:

  • Pivoting feet adjust to various surfaces and angles for better stability.
  • Feet feature non-slip treads for hard surfaces and spiked tips for softer terrain.

  Hobble Strap:

  • A red webbing hobble strap secures the tripod legs at the base using a single quick-connect Cobra Buckle.
  • The single strap is lighter than a chain and faster to set up than multiple materials.
  • The bright red color is highly visible, reducing the risk of trips and falls.

  Carry Bag:

  • Comes with a reinforced carry bag that includes a diagram for balanced, single-person transport.
  • Can also be carried by two people using end handles or by one person with the padded center shoulder strap.

Triskelion Components

• Triskelion Tripod
• Hobble Strap
• Carry Bag
• Leg Strap
• User Manual

Specifications

Certifications

• NFPA – General Use
• EN 795:2012 Type B for Single Person Use
• CEN/TS 16415:2013 Type B for 2 Person Use

Accessories (Sold Separately)

Equipment Bracket:

• Adds an extra anchor or tie-off point when secured to the tripod leg.
• Attaches easily with two push-pins that feature wire lanyards for convenience.
• Can be installed on either the inside or outside of the leg, providing versatile rigging options.
• Supports mechanical advantage systems, rope devices, and pulley use at the top of the Triskelion.
• Maximum breaking strength (MBS) of 22 kN, with a working load limit of 220 kg (484 lb), adhering to a 10:1 safety factor.

LokHead Winch Adapter:

• Allows the Harken LokHead Winch to be securely mounted on the Triskelion.
• Installs quickly and smoothly using large, easy-to-operate ball-lock push pins.
• Offers a more efficient and streamlined installation compared to the traditional u-bolt and anchor strap method.
• Provides a secure, self-contained attachment that can be mounted on both the inside and outside of the legs.

Salalift II Winch Adapter:

• Enables the use of the 3M DBI/SALA Salalift II Winch with the Triskelion.
• Installs smoothly and securely using large ball-lock push pins for quick setup.

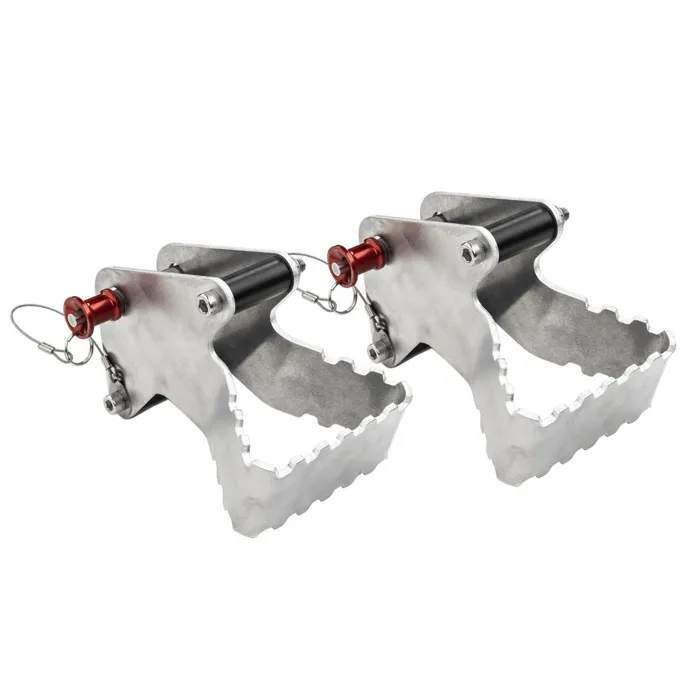

Foot Step Kit (2 Steps):

• Attaches to the lower section of the Triskelion leg, allowing operators to reach the top once the tripod is fully set up.
• Offers a safe and efficient way to adjust rigging, fix issues, and conduct safety inspections at height.

Ground Stake Kit (3 Stakes):

• Integrates with the Triskelion’s feet to provide added stability on soft or uneven terrain.
