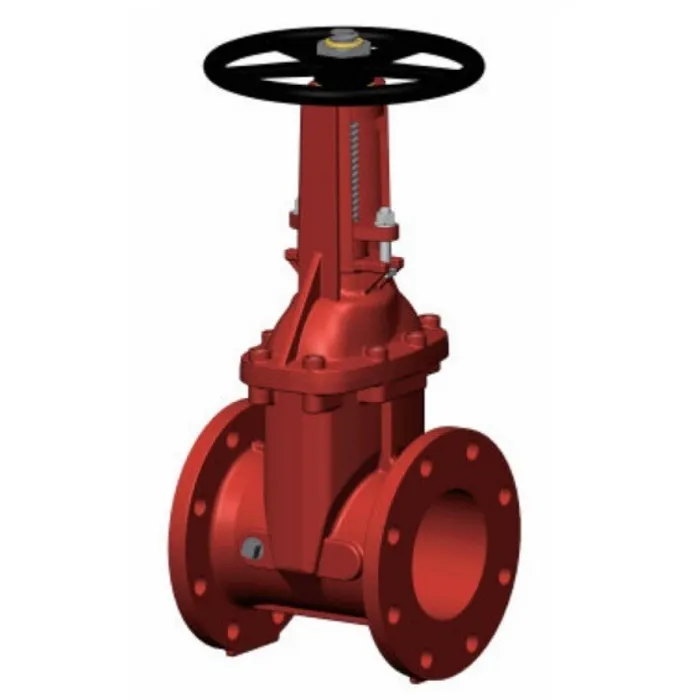

CHIEF FIRE OS&Y Resilient Seated Gate Valve – DB-CF200

د.إ 1,680.00

Meet or exceed the requirements of AWWA C515 standard.
Full waterway
Adjustable packing
Rubber fully encapsulated ductile iron wedge.
Corrosion Protection – Fusion bonded coating interior and exterior meet or exceed all applicable of AWWA C550 standard.
Working Pressure and Temperature – 300 psi rated @ -10° C to 82°C for 2.5” to 12”
Handwheel – open left or open right.
Face to face dimensions complies with ASME B16.10 and EN558 series 3.
Flange and drilling complies with ASTM B16.1 Class 125.
UL/ULC 262 listed, FM 1120/1130 approved.
Certificated to ANSI/NSF 61 & 372.
