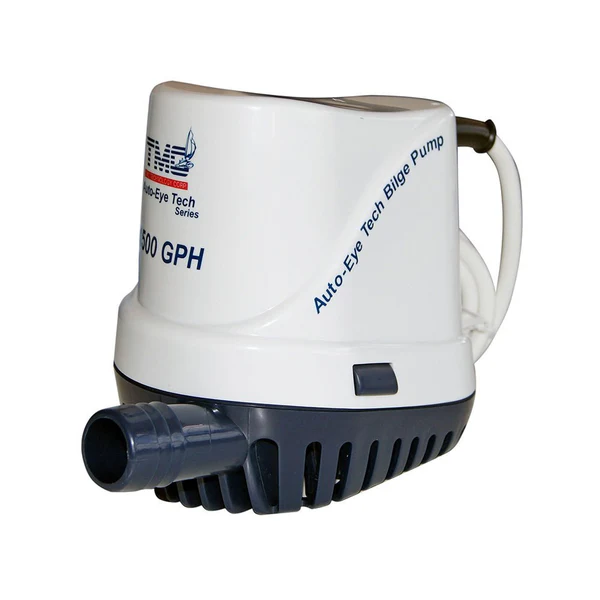

TMC Auto-Eye Series of submersible bilge Pumps are equipped with Built-In electronic controlled reed sensor system to make fully automatic operation easy.
No separate float switch is needed and relay loop design protect the pump against instant high current.
No power use until pump turns on when water rises.
Autoe-Eye pumps are built with compact, efficient, long life moter, rust and corrosion protected S.S. shaft, and high-impact durable plastic durable plastic housing. quick release strainer for easy cleaning.
Motor : 12 V.
Capacity : 1500 GPH ( 5676 LPH ), 1000 GPH ( 3786 LPH ).
AMP Draw : 9 Amp . (1500 GPH), 4.5 Amp. (1000 GPH).
Fuse Size : 12 Amp. (1500 GPH), 6 Amp. 1000 GPH ( 3786 LPH ).
Hose Dia. : 1″ ( 26.5 mm ).
Delivery Head : 13 ft. ( 4 M ).
Dimension ( L x W x H ) : 190.7 x 108 x 150 mm. (1500 GPH), 165 x 96 x 130 mm. (1000 GPH).
