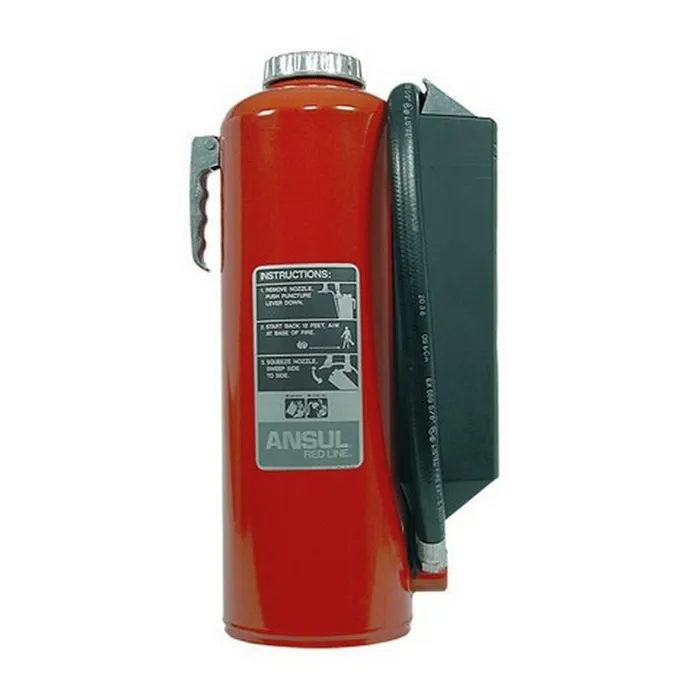

Ansul Portable Fire Extinguisher, Dry Chemical, 30 lb., I-A-30-G-1, ABC- 428230
RED LINE dry chemical extinguishers are designed for the protection of ordinary and high risk hazards. This hand portable extinguisher is used in industries where the occurrence or possibility of fire is high. The RED LINE extinguisher has set the standard for reliable fire protection in many industries and applications including refining, petrochemical, oil and natural gas production, mining, transportation, utilities, metal processing, paint process areas, welding areas, material storage areas and many others.
Features
- Rugged, durable, reliable fire protection.
- Ergonomically designed for maximum operator performance.
- Meets or exceeds requirements of ANSI/UL 299 and 711,or ULC S504 and S508.
- USCG approved with proper bracket.
- Simple and safe operation.
- Maintenance checks can be easily made on every moving part.
- Field rechargeable.
- Four sizes (5, 10, 20 and 30) available with many options to suit your needs.
- Field replacement metal cartridge guard option available for 20 and 30 pound extinguishers.
- Choice of dry chemical agents to satisfy specific protection requirements.
- First response fire fighting training available at the ANSUL® Fire School or through trained distributors.
- Manual, parts lists and training video tapes available.
- Twelve-year limited warranty.
- Sold and serviced through our network of independent distributors in every state and most countries throughout the world
- Ansul FORAY ABC
- Temperature Range –40 °F (–40 °C) to 120 °F (48.8 °C)
Specifications
| Model | I-A-30-G-1 |
| Agent | FORAY |
| Capacity | 25 lb (11.3 kg) |
| UL/ULC Rating | 10-A:80-B:C |
| Coast Guard Classification |
Type A, Size II Type B:C, Size III |
| Discharge Time | 26 sec |
| Flow Rate | 0.89 lb/sec (0.40 kg/sec) |
| Effective Range | 20 ft (6.1 m) |
| Nozzle Stream | Expanding |
| Approvals | UL, ULC, FM, USCG** |
| Brackets • Multipurpose*** • Heavy Duty*** • Heavy Duty Ring Pin*** |
14098 30889 25428 |
| Charged Weight | 49.5 lb (22.5 kg) |
| Dimensions: Height Width Depth |
22.5 in. (572 mm) 11.1 in. (283 mm) 8.0 in. (203 mm) |
| Hose ID | 0.6 in. (16 mm) |
| Hose Length | 35.6 in. (905 mm) |
| Shell OD | 7.0 in. (175 mm) |
| Fire Suppression C apability* Novice Operator Experienced Operator |
80 ft2 (7.4 m2) 200 ft2 (18.6 m2) |
