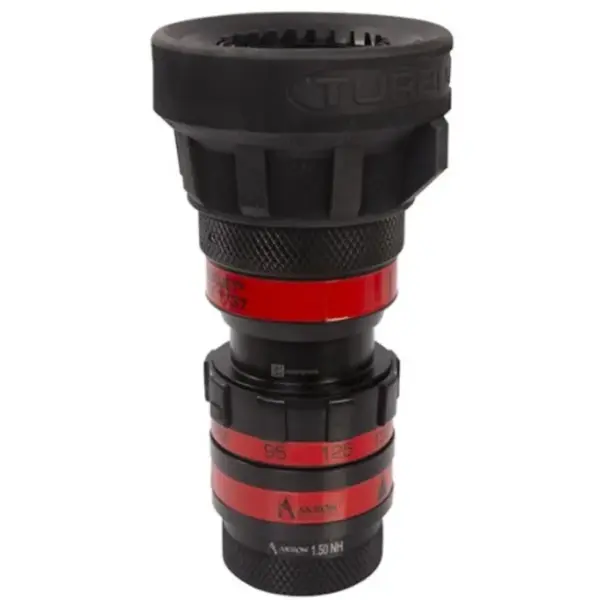

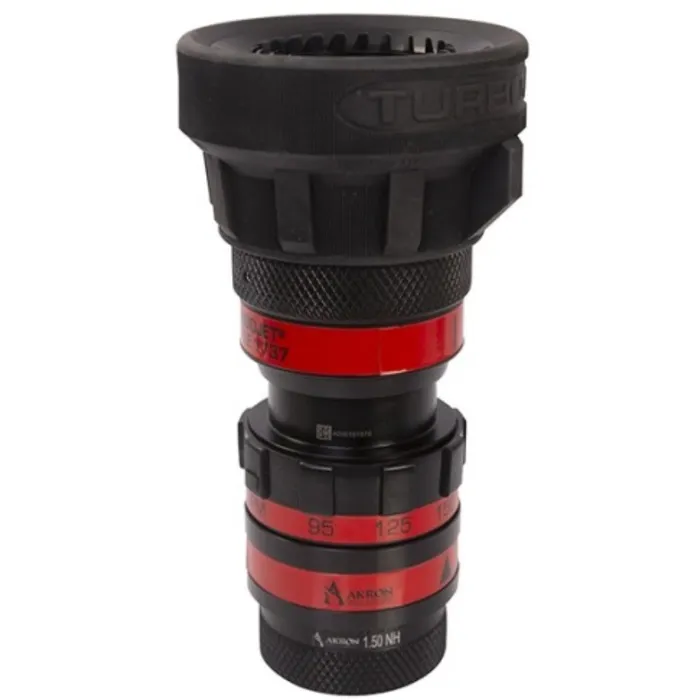

AKRON Mid-Range Turbojet Tip – 1724
Lightweight fog and straight stream Style 1737 Mid-Range TurboJet tip with multiple fixed constant gallonage settings of 95-125-150-200 gpm (360-475-550-750 lpm) @ 100 or 75 psi (7 or 5 bar). The nozzle shall have spinning teeth, multiple pattern detents, and an extruded Pyrolite body. The nozzle shall also have a minimum 110° angle at wide fog, a full-time swivel inlet, come with a ten year warranty, be capable of flushing without shutting down. Must meet all aspects of NFPA 1964 with test results available.
Features
- Pattern Identification
- Larger more legible labels
- Simple to operate (1/4 turn from straight stream to fog)
- Raised lug marks straight stream for limited visibility operations
- Easy to service & repair
- Meets European Standard
- Flow settings at 100 psi (7 bar) standard, 75 psi (5 bar)
Applications/Solutions
- Mining
Specifications
| Style | 1737 |
|---|---|
| Warranty |  |
| Weight | 4 1/2 lbs (2.0 kg) |
| Type | Selectable Gallonage |
| Material | Pyrolite |
| Brand | TurboJet |
| Swivel Inlet | 1 1/2” (38 mm) |
| Length | 7-1/4″ without inlet (152 mm) |
