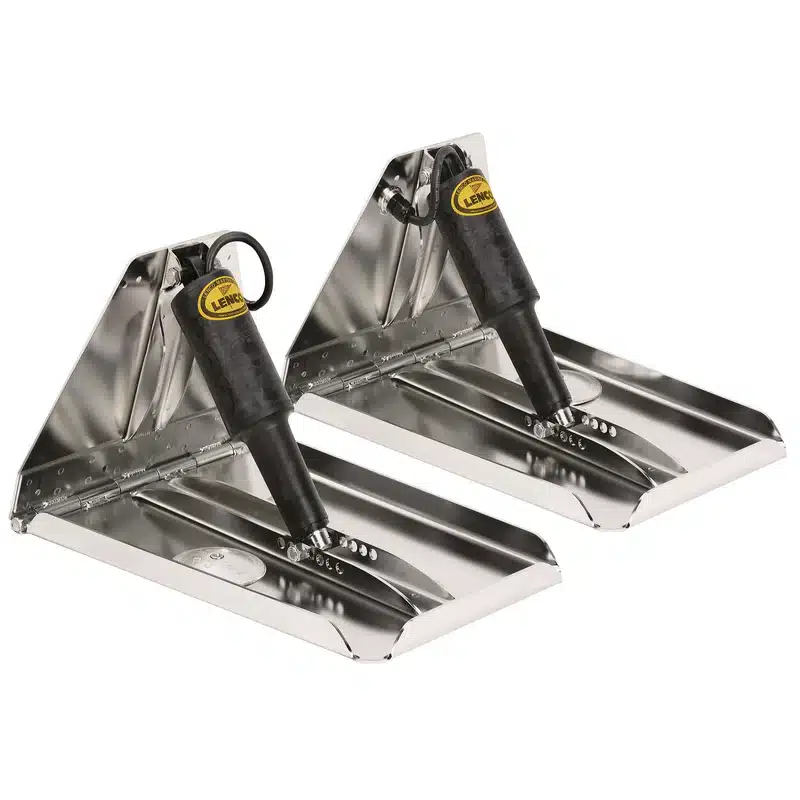

The only single actuator Extreme Duty design offered. This kit is similar to our Heavy Duty Performance series with a thicker, stronger blade for those boaters who run hard in extreme conditions. Boat lengths 20’ (6.1 m) to 40’ (12.2 m).
Blades are constructed of Electro-Polished 10 gauge (3.4 mm) laser cut 304 stainless steel with 1” (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 3/8” (9.5 mm) diameter hinge pin.
Full transom back plate with mechanical strain-relief cable seals, welded on stainless steel upper & adjustable lower actuator mounting brackets, 3/8” (9.5 mm) stainless steel mounting bolts. 3.75” (9.5 cm) sacrificial anodes installed.
Size :  17″ L x 12″ W.
Voltage : 12 V.
Boat Length :  20′ – 40′.
Min. Transom Height : 10.5″ (26.7 cm).
(2) 10-gauge stainless steel Electro-Polished blades.
(2) 15056-001 XD Extreme Duty actuators with 6′ (1.8 m) leads & Deutsch connectors.
Lenco owner’s/installation manual.
Note: Actuator extension harnesses not in kits, must be purchased separately (2 required).

17″ x 12″ Heavy Duty Trim Tab Kit without Switch
